ST-32EA-(51)-50 OHM | Nidec Copal
Cermet trimmer potentiometer, 50 Ω, 0.125 W, SMD, on top, ST-32EA-(51)-50 OHM
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 48 Weeks

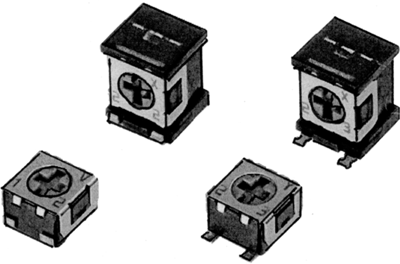

Trimmer potentiometer, ST-32EA-(51)-50 OHM, Nidec Copal
Surface mount cermet trimmer features a single turn design and a rotor with a convenient cross slot for easy adjustment. Leaded terminal is used to ensure strong adhesive strength against PCB bending. The trimmer is sealed for added protection. Can be adjusted from the top.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 0.125 W | |
| max. number of revolutions | 1 | |
| Seeting | on top | |
| Contact distance | RM 2.1 | |
| Connection | J-hook | |
| Temperature coefficient | ±250 ppm/K | |
| max. operating temperature | 125 °C | |
| Tolerance | ±20 % | |
| Length | 3.2 mm | |
| Height | 2 mm | |
| Assembly | SMD | |
| Width | 3.5 mm | |
| min. operating temperature | -55 °C | |
| Track Taper | linear | |
| ohmic resistance | 50 Ω | |
| Version | cermet trimmer potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 100 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
