RJ-6P-503-50K OHM | Nidec Copal

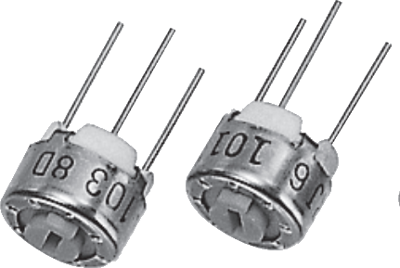

Cermet trimmer potentiometer, 50 kΩ, 0.5 W, THT, on top, RJ-6P-503-50K OHM
Unit Price (€ / pc.)
3.1892 € *
Available: 521 pcs.
Total Price:
3.19 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1892 €
25 pcs.
2.7013 €
100 pcs.
2.4990 €
200 pcs.
2.4038 €
800 pcs.
2.2015 €
*incl. VAT plus shipping costs
Subject to prior sale
Trimmer potentiometer, RJ-6P-503-50K OHM, Nidec Copal
The trimmer is a single turn cermet type with a resistance of 50.000 Ω. It features a wiper made of a precious metal alloy and can be adjusted from the top.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cermet trimmer potentiometer | |
| ohmic resistance | 50 kΩ | |
| Tolerance | ±10 % | |
| Power | 0.5 W | |
| Assembly | THT | |
| Track Taper | linear | |
| Temperature coefficient | ±100 ppm/K | |
| Rotary range, electrical | 270 ° | |
| Mechanic rotary range | 230 ° | |
| max. number of revolutions | 1 | |
| Seeting | on top | |
| Connection | solder pin | |
| Contact distance | RM 2.5 | |
| Length | 7 mm | |
| Width | 5 mm | |
| Height | 5.8 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Original Packaging | Bulk with 100 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
