CT-94EY-503-50K OHM | Nidec Copal

Cermet trimmer potentiometer, 18 turns, 50 kΩ, 0.5 W, THT, on top, CT-94EY-503-50K OHM

Order No.: 66E9474
EAN: 4099879891488
MPN:
CT-94EY-503-50K OHM
Series: CT-94

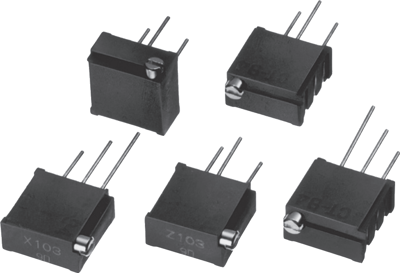

CT-94EY-503-50K OHM Nidec Copal Trimmer Potentiometers Image 1
CT-94EY-503-50K OHM Nidec Copal Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.1424 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
228.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
1.1424 €

Trimmer potentiometer, CT-94EY-503-50K OHM, Nidec Copal

Cermet trimmer is a precision type. Sealed and has 18 turns. Features a thin body design, measuring only 4.8 mm in thickness. The resin material used in its construction is UL Recognized 94V-0, excluding adhesives. RoHS compliant, ensuring its adherence to environmental standards. It can be easily adjusted from the top side.

Technical specifications
Filter Property Value
Version cermet trimmer potentiometer
ohmic resistance 50 kΩ
Tolerance ±10 %
Power 0.5 W
Assembly THT
Track Taper linear
Temperature coefficient ±100 ppm/K
Rotary range, electrical 5400 °
Mechanic rotary range 6480 °
max. number of revolutions 18
Seeting on top
Connection solder pin
Contact distance RM 2.5
Length 9 mm
Width 9 mm
Height 4 mm
min. operating temperature -55 °C
max. operating temperature 125 °C
Logistics
Property Value
Country of origin CN
Customs tariff number 85334010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
