SD-1010WB | Nidec Copal
Encoding rotary switch, 16 pole, BCD-Real, straight, 100 mA/5 VDC, SD-1010WB
Unit Price (€ / pc.)
1.8564 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
92.82 € *
Price list
Quantity
Price per unit*
50 pcs.
1.8564 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale

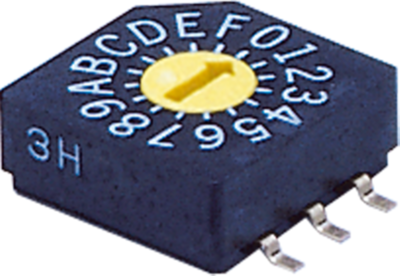

Rotary code switch, SD-1010WB, Nidec Copal
Features
- Leadfree soldering
- Fine click with metallic spring
- Low profile of 3.9 mm makes perfect for high density board mounting applications
- Gold plated contact provides excellent reliability
- Terminal pin arrangement 33
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | gull-wing | |
| Actuation | on top | |
| Pin number | 16 pole | |
| Design | straight | |
| contact surface | gold-plated | |
| Breaking capacity | 100 mA/5 VDC | |
| Version | encoding rotary switch | |
| Grid | 2.54 mm | |
| Coding | BCD-Real |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
| Original Packaging | Bulk with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
