S-7070EMB | Nidec Copal
Encoding rotary switch, 16 pole, hexadecimal, straight, 100 mA/5 VDC, S-7070EMB
Unit Price (€ / pc.)
4.5458 € *
Available: 150 pcs.
Total Price:
113.65 € *
Price list
Quantity
Price per unit*
25 pcs.
4.5458 €
50 pcs.
4.1055 €
100 pcs.
3.6057 €
250 pcs.
3.4748 €
1000 pcs.
3.2487 €
*incl. VAT plus shipping costs
Subject to prior sale
Rotary coding switches, type Copal S-7000.
With adjustment slot and 10 switch positions for BCD code, or 16 switch positions for hexadecimal code; Contact rating: dynamic 5.0 VDC/100 mA, static 50 VDC/100 mA, minimum 20/1.0 µA. Contact resistance: max. 100 mohm. Insulation resistance at 100 VDC: min. 100 Mohm. Test voltage: 250 VAC, 60 s. Operating temperatures: –40 to +85 °C. Connections: copper alloy, gold-plated. Housing: epoxy (UL 94 V-0). The switch is sealed with a silicon O-ring and suitable for automatic processing.

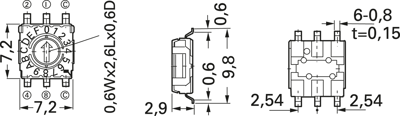

SMD version, gullwing contacts, actuation from the top, type S-70.
Technical attributes (type, coding): S-7070EMB, hexadecimal/complement code
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | gull-wing | |
| Actuation | on top | |
| Pin number | 16 pole | |
| Design | straight | |
| contact surface | gold-plated | |
| Breaking capacity | 100 mA/5 VDC | |
| Version | encoding rotary switch | |
| Grid | 2.54 mm | |
| Coding | hexadecimal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
