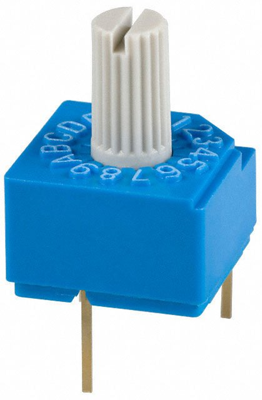

S-1110A (P) | Nidec Copal

Encoding rotary switch, 16 pole, Hexadecimal-Real, straight, 100 mA/5 VDC, S-1110A (P)

Order No.: 17G305
EAN: 4099889202328
MPN:
S-1110A (P)
Series: S-1000A
S-1110A (P) Nidec Copal Slide Switches and Coding Switches
Image may differ
Unit Price (€ / pc.)
3.4629 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
86.57 € *
Price list
Quantity
Price per unit*
25 pcs.
3.4629 €
50 pcs.
2.9869 €
100 pcs.
2.8560 €
250 pcs.
2.6418 €
*incl. VAT plus shipping costs
**Subject to prior sale

Rotary coding switches with adjustment shaft, type Copal S-1000A.

16 switch positions for hexadecimal code, for PCB connection; Contact and terminal material: gold-plated copper alloy. Contact rating: dynamic 100 mA/5.0 VDC, static 100 mA/50 VDC, minimum 1.0 µA/20 mV DC. Operating temperatures: –40 to +85 °C.

For top adjustment.

Type: S-1110A, hexadecimal real code

Technical specifications
contact surface gold-plated
Coding Hexadecimal-Real
Breaking capacity 100 mA/5 VDC
Grid 2.54 mm
Pin number 16 pole
Version encoding rotary switch
Design straight
Actuation on top
Connection PCB pin
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
