CHS-01A | Nidec Copal
DIP switche, Off-On, 1 pole, straight, 100 mA/6 VDC, CHS-01A
Unit Price (€ / pc.)
1.6422 € *
Available: 540 pcs.
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6422 €
25 pcs.
1.3923 €
100 pcs.
1.2971 €
250 pcs.
1.2257 €
1000 pcs.
1.1186 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD coding DIP switches, type Copal CHS.
Design A (J-hook, inward contacts) and B (gull wing, outward contacts); Contact rating: active 6.0 VDC/100 mA (24 VDC/25 mA), passive 50 VDC/100 mA, minimum 20/1.0 µA. Contact resistance: max. 50 mohm. Insulation resistance: 1000 Mohm (100 VDC). Test voltage: 500 VAC/60 s. Operating temperatures: –40 to +85 °C. Contacts and terminals: gold-plated copper alloy. Housing: PPS (UL 94 V-0).
With 1 switch, type CHS-01.

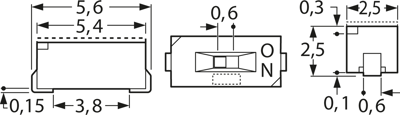

Type: CHS-01A, design A, J-hook
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | J-hook | |
| Actuation | on top | |
| Pin number | 1 pole | |
| Design | straight | |
| Shift position | Off-On | |
| contact surface | gold-plated | |
| Breaking capacity | 100 mA/6 VDC | |
| Version | DIP switche | |
| Grid | 1.27 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
