CS-4-22YMA | Nidec Copal

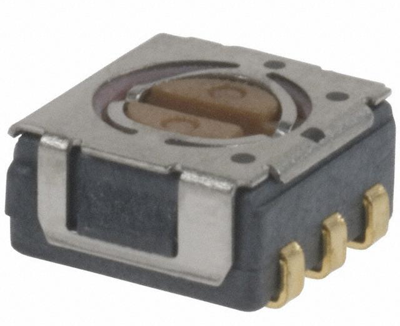

SMD rotary switch, 2 pole, 2 stage, 45°, On-Off-On, short-circuiting, 100 mA, 16 V, CS-4-22YMA
Unit Price (€ / pc.)
2.4633 € *
Standard delivery time from the manufacturer is: 12 Weeks
SMD rotary switches, type Copal CS-4.
Compact dimensions; Basic dimensions in mm: 4.5 x 5.0 x 2.3. Contact rating: 0.5 VA DC. Breaking capacity: max. 100 mA/16 V. Contact resistance: max. 100 mohm. Insulation resistance: 100 Mohm on 500 VDC. Test voltage: 500 VAC (60 s). Operating temperatures: –25 to +70 °C. Design: make before break, wash-proof due to O-ring seal. Adjustment from the top.
Double-pole, 2 contacts, neutral center position, ON-OFF-ON function, type CS-4-22YA.
Type: CS-4-22YA, SMD rotary switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching angle | 45 ° | |
| Number of steps | 2 | |
| Switching Mode | short-circuiting | |
| switching current | 100 mA | |
| Shift position | On-Off-On | |
| Rated voltage | 16 V | |
| Connection | SMD | |
| Product type | SMD rotary switch | |
| Pin number | 2 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Original Packaging | Bar with 50 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
