CS-4-13NMA | Nidec Copal

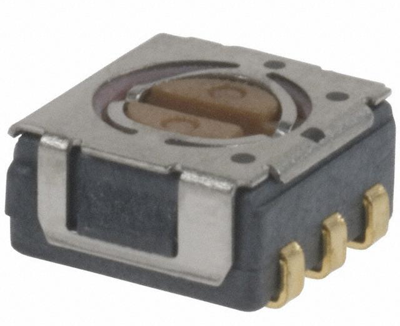

SMD rotary switch, 1 pole, 3 stage, 45°, On-On-On, short-circuiting, 100 mA, 16 V, CS-4-13NMA
Unit Price (€ / pc.)
2.499 € *
Standard delivery time from the manufacturer is: 12 Weeks
SMD rotary switches, type Copal CS-4.
Compact dimensions; Basic dimensions in mm: 4.5 x 5.0 x 2.3. Contact rating: 0.5 VA DC. Breaking capacity: max. 100 mA/16 V. Contact resistance: max. 100 mohm. Insulation resistance: 100 Mohm on 500 VDC. Test voltage: 500 VAC (60 s). Operating temperatures: –25 to +70 °C. Design: make before break, wash-proof due to O-ring seal. Adjustment from the top.
Single-pole, 3 contacts, ON-ON-ON function, type CS-4-13NA.
Type: CS-4-13NA, SMD rotary switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Mode | short-circuiting | |
| Number of steps | 3 | |
| Rated voltage | 16 V | |
| Switching angle | 45 ° | |
| Connection | SMD | |
| Pin number | 1 pole | |
| Product type | SMD rotary switch | |
| Shift position | On-On-On | |
| switching current | 100 mA |
