M-1303-103-10K OHM | Nidec Copal

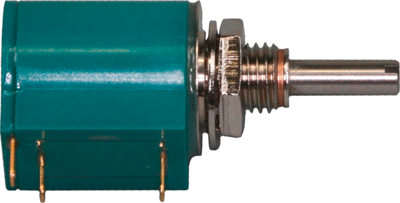

Wire-wound potentiometer, 3 turns, 10 kΩ, 0.75 W, linear, solder lug, M-1303-103-10K OHM
Unit Price (€ / pc.)
26.9654 € *
Available: 19 pcs.
Total Price:
26.97 € *
Price list
Quantity
Price per unit*
1 pcs.
26.9654 €
10 pcs.
23.7405 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-wound multi-turn potentiometers, 3-turn, type Copal M-1303.
Rated load: 0.75 W. Tolerance: ±5.0 %. Electrical/mechanical turns: 1080°. Operating temperatures: –40 to +85 °C. With 3.0 mm shaft.
Type: 10K

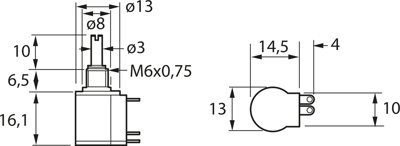

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 1080 ° | |
| Power | 0.75 W | |
| max. number of revolutions | 3 | |
| Connection | solder lug | |
| max. operating temperature | 85 °C | |
| axle diameter | 3 mm | |
| Rotary range, electrical | 1080 ° | |
| Length | 13 mm | |
| Assembly | angled | |
| Width | 16.1 mm | |
| min. operating temperature | -40 °C | |
| Track Taper | linear | |
| ohmic resistance | 10 kΩ | |
| Version | wire-wound potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85333100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
