RESW20D-50-201-1 | Nidec Copal
Optical rotary encoder, 5 V, impulses 50, RESW20D-50-201-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
29.3811 € *
Standard delivery time from the manufacturer is: On Request

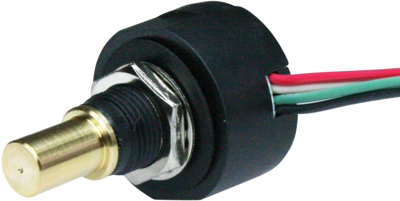

Optical rotary encoder, RESW20D-50-201-1, Nidec Copal
Suitable for manual operation, with or without detent function. Rectangular output shafts, resolution 25 or 50 pulses per turn, compact design, diameter only 20 mm, with front-panel sealing ring; Input voltage: 5.0 VDC ±5.0%. Input current: 50 mA max., output signal High/Low: at least +4.5 V/ max. +0.5 V.
Type: RESW20D-50, encoder, no detent, 50 pulses.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | optical rotary encoder | |
| Voltage | 5 V | |
| Pulses per revolution | 50 | |
| Output signal | 4.5 V | |
| Connection | wire connection | |
| Assembly | panel mounting | |
| Length | 47 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85437090 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
