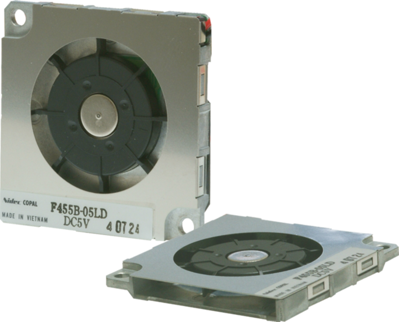

F455B-05LD | Nidec Copal
DC axial fan, 5 V, 45 x 45 x 5 mm, 1.68 m³/h, 20 dB, slide bearing, Nidec Copal F455B-05LD
Unit Price (€ / pc.)
14.875 € *
Standard delivery time from the manufacturer is: 12 Weeks
DC Axial fan, F455B-05LD, NIDEC COPA
Features
- Ultra-slim model, that is ideal for imaging terminals/mobile PCs
- Realization of high air flow and low noise by adoption of hydro dynamic design of impeller
- Longer operating life and low-noise by sealed bearing structure
- 1 sleeve bearing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 5 mm | |
| speed | 4500 1/min | |
| Type of bearing | slide bearing | |
| Volume flow | 1.68 m³/h | |
| Rated voltage | 5 V | |
| Sound pressure level | 20 db | |
| Width | 45 mm | |
| Height | 45 mm | |
| Version | DC axial fan |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | VN |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
