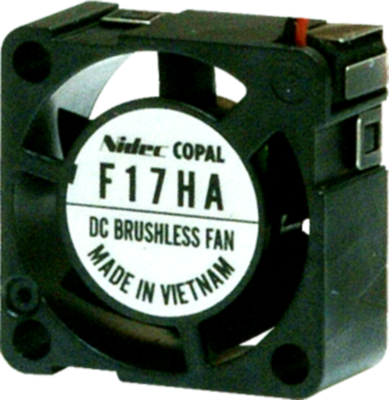

F17HA-05HC | Nidec Copal
DC axial fan, 5 V, 17 x 17 x 8 mm, 1.08 m³/h, 15 dB, slide bearing, Nidec Copal F17HA-05HC
Unit Price (€ / pc.)
6.9734 € *
Standard delivery time from the manufacturer is: 12 Weeks
DC Axial fan, F17HA-05HC, NIDEC COPA
Features
- Low noise, 7 dB (A) type by the correct application of hydrodynamic design of impeller and frame
- Housing made of modified (LCP) reinforces
- Light weight
- Cover made of modified (SUS) reinforces
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 5 V | |
| Width | 17 mm | |
| Height | 17 mm | |
| Depth | 8 mm | |
| Volume flow | 1.08 m³/h | |
| Sound pressure level | 15 db | |
| speed | 8000 1/min | |
| Type of bearing | slide bearing | |
| Power consumption | 150 mW |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | VN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
