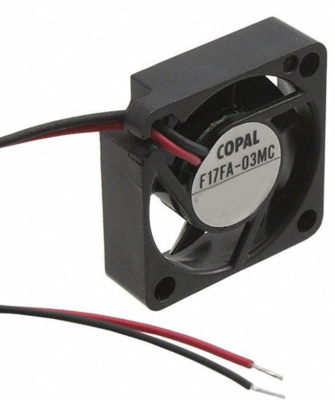

F17FA-03MC | Nidec Copal
DC axial fan, 3 V, 17 x 17 x 5 mm, 0.6 m³/h, 5 dB, slide bearing, Nidec Copal F17FA-03MC
Unit Price (€ / pc.)
6.5926 € *
Standard delivery time from the manufacturer is: 12 Weeks
DC Axial fan, F17FA-03MC, NIDEC COPA
The F17FA-03MC DC axial fan is an ultra-compact with low-profile model, that is ideal for compact electric instrument and local cooling.
Features
- Proprietary impeller design provides high air flow and quiet operation
- 1 sleeve bearing
- Light weight
Applications
- Video equipments
- Information systems
- Telecommunication equipments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 5 mm | |
| Sound pressure level | 5 db | |
| Height | 17 mm | |
| Type of bearing | slide bearing | |
| Width | 17 mm | |
| Volume flow | 0.6 m³/h | |
| Rated voltage | 3 V | |
| Version | DC axial fan | |
| speed | 7000 1/min |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | VN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
