UKL1C150MDD | NICHICON

Name: Electrolytic capacitor, 15 µF, 16 V (DC), ±20 %, radial, pitch 3 mm, Ø 5 mm, UKL1C150MDD
Brand: NICHICON
SKU: 58D4489
Availability: InStock

Electrolytic capacitor, 15 µF, 16 V (DC), ±20 %, radial, pitch 3 mm, Ø 5 mm, UKL1C150MDD

Order No.: 58D4489

EAN: 4099879877703

MPN:

UKL1C150MDD

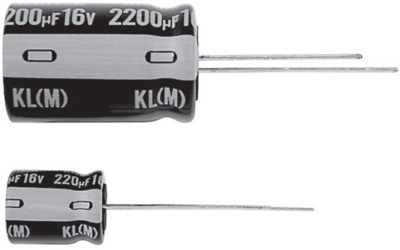

Image may differ

Key Specification:

Version polar

Capacity 15 µF

Rated voltage (DC) 16 V

Tolerance ±20 %

Download Datasheet Technical specifications

Discontinued

Unit Price (€ / pc.)

1.1305 € *

Available: 244 pcs.

Total Price:

1.13 € *

Price list

Quantity

Price per unit*

1 pcs.

1.1305 €

10 pcs.

0.8092 €

100 pcs.

0.6902 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Aluminium electrolytic capacitor, UKL1C150MDD, NICHICON

Features

Standard low leakage current series
Compliant to the RoHS directive

Technical specifications

Filter	Property	Value
	Tolerance	±20 %
	Capacity	15 µF
	diameter	5 mm
	Rated voltage (DC)	16 V
	Grid	3 mm
	max. operating temperature	85 °C
	min. operating temperature	-40 °C
	Version	polar
	Design	radial
	Ripple current	70 mA
	Length	11 mm
