UCY2G470MHD1TN | NICHICON
Electrolytic capacitor, 47 µF, 400 V (DC), ±20 %, radial, pitch 7 mm, Ø 16 mm, UCY2G470MHD1TN
Unit Price (€ / pc.)
1.5827 € *
Available: 152 pcs.
Total Price:
15.83 € *
Price list
Quantity
Price per unit*
10 pcs.
1.5827 €
50 pcs.
1.3923 €
250 pcs.
1.2019 €
1000 pcs.
1.0591 €
2000 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale

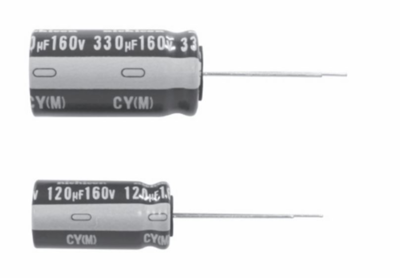

Aluminum electrolytic capacitor, UCY2G470MHD1TN, NICHICON
Features
- High ripple current and Long Life product withstanding load life of 10000 to 12000 hours at +105 °C
- Suited for ballast application
- Compliant to the RoHS directive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±20 % | |
| Capacity | 47 µF | |
| diameter | 16 mm | |
| Rated voltage (DC) | 400 V | |
| Grid | 7 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Design | radial | |
| Ripple current | 520 mA | |
| Length | 20 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ammopack with 1,000 pieces |
| Country of origin | JP |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
