UCY2G150MPD | NICHICON

Electrolytic capacitor, 15 µF, 400 V (DC), ±20 %, radial, pitch 6 mm, Ø 10 mm, UCY2G150MPD

Order No.: 58D2928
EAN: 4099879877512
MPN:
UCY2G150MPD
Series: UCY
UCY2G150MPD NICHICON Electrolytic Capacitors
Image may differ
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
649.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1400 pcs.
0.4641 €

Electrolytic capacitor, UCY2G150MPD, NICHICON

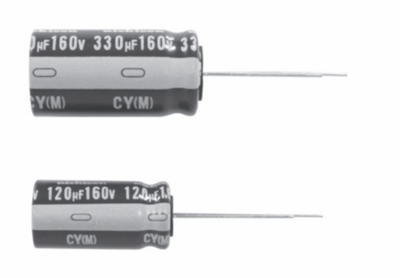

Aluminum electrolytic capacitor

Features

  • High ripple current
  • High rated capacitance
  • RoHS-compatible
  • Long useful life

Applications

  • Automotive electronics
  • Power supply for LED
Technical specifications
Rated voltage (DC) 400 V
Capacity 15 µF
diameter 10 mm
Grid 6 mm
Length 20 mm
Version polar
Design radial
min. operating temperature -40 °C
Tolerance ±20 %
max. operating temperature 105 °C
Ripple current 180 mA
Logistics
Country of origin JP
Customs tariff number 85322200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
