UCS2W470MHD1TN | NICHICON
Electrolytic capacitor, 47 µF, 450 V (DC), ±20 %, radial, pitch 7 mm, Ø 18 mm, UCS2W470MHD1TN
Unit Price (€ / pc.)
2.0587 € *
Available: 121 pcs.
Total Price:
6.18 € *
Price list
Quantity
Price per unit*
3 pcs.
2.0587 €
15 pcs.
1.8088 €
75 pcs.
1.6065 €
400 pcs.
1.4399 €
800 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale

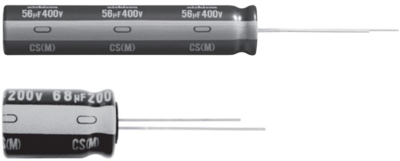

Aluminum electrolytic capacitor, UCS2W470MHD1TN, NICHICON
Radial Lead Type
Features
- High ripple current and Long Life product withstanding load life of 8000 to 10000 hours at +105 °C
- Suited for ballast application
- Compliant to the RoHS directive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7 mm | |
| diameter | 18 mm | |
| Rated voltage (DC) | 450 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 25 mm | |
| Capacity | 47 µF | |
| min. operating temperature | -40 °C | |
| Ripple current | 600 mA | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Ammopack with 1,250 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
