UCS2G470MHD1TN | NICHICON
Electrolytic capacitor, 47 µF, 400 V (DC), ±20 %, radial, pitch 7 mm, Ø 16 mm, UCS2G470MHD1TN
Unit Price (€ / pc.)
1.4637 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
365.93 € *
Price list
Quantity
Price per unit*
250 pcs.
1.4637 €
1000 pcs.
1.2852 €
2000 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale

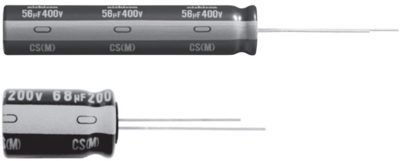

Aluminum electrolytic capacitor, UCS2G470MHD1TN, NICHICON
Radial Lead Type
Features
- High ripple current and Long Life product withstanding load life of 8000 to 10000 hours at +105 °C
- Suited for ballast application
- Compliant to the RoHS directive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Capacity | 47 µF | |
| Rated voltage (DC) | 400 V | |
| Tolerance | ±20 % | |
| Ripple current | 590 mA | |
| Design | radial | |
| Grid | 7 mm | |
| diameter | 16 mm | |
| Length | 25 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Ammopack with 1,000 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
