UCL1V471MNL1GS | NICHICON
Electrolytic capacitor, 470 µF, 35 V (DC), ±20 %, SMD, Ø 10 mm, UCL1V471MNL1GS
Unit Price (€ / pc.)
1.0234 € *
Available: 392 pcs.
Total Price:
1.02 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0234 €
10 pcs.
0.7378 €
100 pcs.
0.6307 €
500 pcs.
0.5355 €
1000 pcs.
0.4879 €
*incl. VAT plus shipping costs
Subject to prior sale

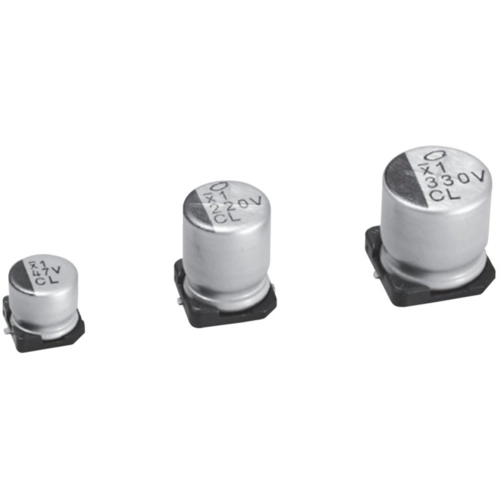

Aluminum electrolytic capacitor, UCL1V471MNL1GS, NICHICON
Chip Type
Features
- Chip type, low impedance temperature range up to +105 °C
- Applicable to automatic mounting machine fed with carrier tape
- Compliant to the RoHS directive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 10 mm | |
| Rated voltage (DC) | 35 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 13 mm | |
| Capacity | 470 µF | |
| min. operating temperature | -55 °C | |
| Ripple current | 595 mA | |
| Design | SMD | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Reel with 1,600 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
