UCL1V101MCL6GS | NICHICON
Electrolytic capacitor, 100 µF, 35 V (DC), ±20 %, SMD, Ø 6 mm, UCL1V101MCL6GS
Unit Price (€ / pc.)
0.2356 € *
Standard delivery time from the manufacturer is: 24 Weeks

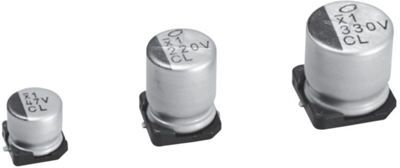

Aluminum electrolytic capacitor, UCL1V101MCL6GS, NICHICON
Chip Type
Features
- Chip type, low impedance temperature range up to +105 °C
- Applicable to automatic mounting machine fed with carrier tape
- Compliant to the RoHS directive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 6 mm | |
| Rated voltage (DC) | 35 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 7 mm | |
| Capacity | 100 µF | |
| min. operating temperature | -55 °C | |
| Ripple current | 300 mA | |
| Design | SMD | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Reel with 900 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
