UCD1H221MNL1GS | NICHICON
Electrolytic capacitor, 220 µF, 50 V (DC), ±20 %, SMD, Ø 10 mm, UCD1H221MNL1GS
Unit Price (€ / pc.)
0.3689 € *
Standard delivery time from the manufacturer is: 22 Weeks

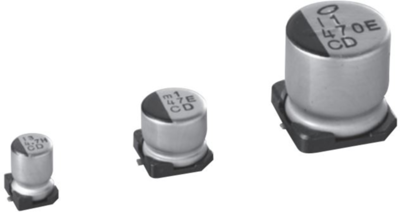

Aluminum electrolytic capacitor, UCD1H221MNL1GS, NICHICON
Chip Type
Features
- Chip type, low impedance temperature range up to +105 °C
- Designed for surface mounting on high density PC board
- Applicable to automatic mounting machine fed with carrier tape
- Compliant to the RoHS directive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 10 mm | |
| Rated voltage (DC) | 50 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 10 mm | |
| Capacity | 220 µF | |
| min. operating temperature | -55 °C | |
| Ripple current | 350 mA | |
| Design | SMD | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
