NACE470M50V6.3X8TR | NIC
Electrolytic capacitor, 47 µF, 50 V (DC), -20/+20 %, SMD, Ø 6.3 mm, NACE470M50V6.3X8TR
Discontinued
Unit Price (€ / pc.)
0.1607 € *
Available: 500 pcs.
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1607 €
10 pcs.
0.1285 €
100 pcs.
0.1154 €
250 pcs.
0.0964 €
500 pcs.
0.0845 €
*incl. VAT plus shipping costs
Subject to prior sale

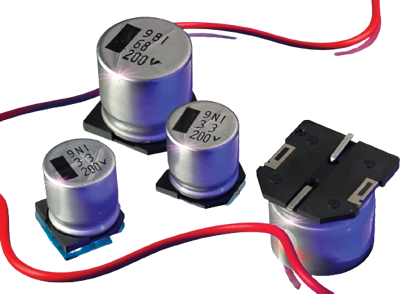

Aluminum electrolyic capacitor, NACE470M50V6.3X8TR, NIC
The NACE470M50V6.3X8TR is a aluminium general purpose surface mount aluminum electrolyic capacitors designed for automatic mounting and reflow soldering.
Features
- Cylindrical V-Chip construction
- Low cost, general purpose
- New expanded CV range
- Anti-solvent
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 47 µF | |
| diameter | 6.3 mm | |
| max. operating temperature | 85 °C | |
| Length | 8 mm | |
| min. operating temperature | -40 °C | |
| Ripple current | 90 mA | |
| Design | SMD | |
| Connection | solder connection | |
| ESR (Equivalent Series Resistance) | 3.53 Ω | |
| Version | polar | |
| Rated voltage (DC) | 50 V | |
| Tolerance | -20/+20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 500 pieces |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
