NACE101M50V8X10.5TR | NIC

Electrolytic capacitor, 100 µF, 50 V (DC), -20/+20 %, SMD, Ø 8 mm, NACE101M50V8X10.5TR

Order No.: 10D3306
EAN: 4099891369316
MPN:
NACE101M50V8X10.5TR
Series: NACE
NACE101M50V8X10.5TR NIC Electrolytic Capacitors

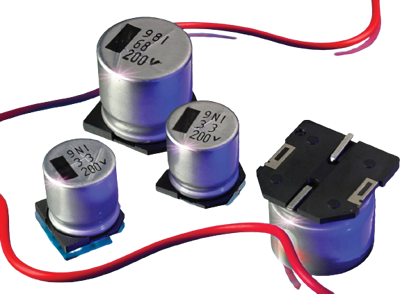

Image may differ

Discontinued

Unit Price (€ / pc.)
0.3570 € *
Available: 299 pcs.
Leadtime: On Request **
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3570 €
10 pcs.
0.2832 €
100 pcs.
0.2559 €
150 pcs.
0.2130 €
300 pcs.
0.1856 €
*incl. VAT plus shipping costs
**Subject to prior sale

Aluminum electrolyic capacitor, NACE101M50V8X10.5TR, NIC

The NACE101M50V8X10.5TR is a aluminium general purpose surface mount aluminum electrolyic capacitors designed for automatic mounting and reflow soldering.

Features

  • Cylindrical V-Chip construction
  • Low cost, general purpose
  • New expanded CV range
  • Anti-solvent
Technical specifications
Rated voltage (DC) 50 V
ESR (Equivalent Series Resistance) 1.99 Ω
Tolerance -20/+20 %
Design SMD
Version polar
Ripple current 200 mA
Connection solder connection
diameter 8 mm
Length 10.5 mm
max. operating temperature 85 °C
min. operating temperature -40 °C
Capacity 100 µF
Logistics
Original Packaging Reel with 300 pieces
Country of origin JP
Customs tariff number 85322200
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
