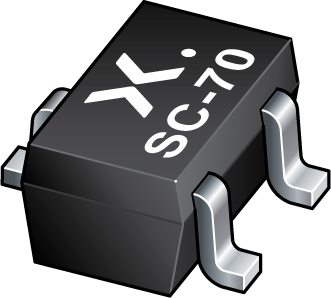

BAV70W,115 | NEXPERIA
High-speed switching double diode, dual, 200 mW, 100 V, SOT-323, NEXPERIA BAV70W,115
Unit Price (€ / pc.)
0.0178 € *
Standard delivery time from the manufacturer is: 1 Week
Switching diode, BAV70W,115, NEXPERIA
The BAV70W,115 is a high-speed switching double diode, encapsulated in a very small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
Features
- Low leakage current
- Reverse voltage
- Low capacitance
Applications
- High-speed switching at high voltage
- General-purpose switching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | dual | |
| Enclosure | SOT-323 | |
| Pulse power loss | 200 mW | |
| Breakdown voltage | 75 V | |
| Number of diodes | 1 | |
| Assembly | SMD | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C | |
| Rated blocking voltage | 100 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
