PMEG6030EVPX | NEXPERIA
Schottky rectifier diode, 60 V (RRM), 3 A, SOD-128, PMEG6030EVPX
Unit Price (€ / pc.)
0.6545 € *
Standard delivery time from the manufacturer is: 1 Week

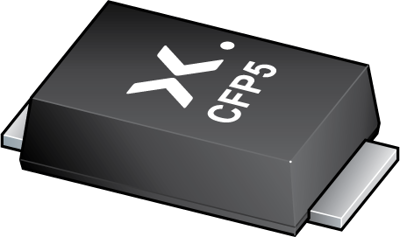

Schottky diode, PMEG6030EVPX, NEXPERIA
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package.
Features
- Low forward voltage
- High power capability due to clip-bonding technology
- Suitable for both reflow and wave soldering
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Reverse polarity protection
- Low power consumption applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 175 °C | |
| Forward Current | 3 A | |
| max. operating temperature | 175 °C | |
| Voltage V RRM (peak reverse voltage) | 60 V | |
| Capacity | 575 pF | |
| Assembly | SMD | |
| Number of diodes | 1 | |
| min. operating temperature | -65 °C | |
| Enclosure | SOD-128 | |
| Version | schottky rectifier diode |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
