PMEG4010ER,115 | NEXPERIA

Schottky rectifier diode, 40 V (RRM), 1 A, SOD-123W, PMEG4010ER,115

Order No.: 10S9167
EAN: 4099879045058
MPN:
PMEG4010ER,115
Series: PMEG40
PMEG4010ER,115 NEXPERIA Schottky Diodes

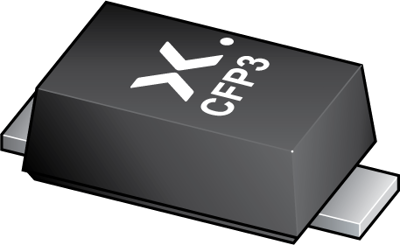

Image may differ
Unit Price (€ / pc.)
0.1107 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
332.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.1107 €

Schottky diode, PMEG4010ER,115, NXP

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD123W small and flat lead Surface-Mounted Device (SMD) plastic package.

Features

  • Average forward current
  • High power capability due to clip-bond technology
  • Low voltage rectification
  • Reverse polarity protection
Technical specifications
Assembly SMD
Enclosure SOD-123W
Capacity 130 pF
Forward Current 1 A
Number of diodes 1
Version schottky rectifier diode
Junction temperature (max.) 150 °C
min. operating temperature -65 °C
Voltage V RRM (peak reverse voltage) 40 V
max. operating temperature 150 °C
Logistics
Country of origin MY
Customs tariff number 85411000
Original Packaging Reel with 3,000 pieces
Compliance
Date of RoHS guidelines 6/8/11
SVHC free Yes
RoHS conform Yes
