PMEG4010EJ,115 | NEXPERIA
Schottky rectifier diode, 40 V (RRM), 1 A, SOD-323F, PMEG4010EJ,115
Unit Price (€ / pc.)
0.2237 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.22 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2237 €
50 pcs.
0.2178 €
250 pcs.
0.2130 €
*incl. VAT plus shipping costs
Subject to prior sale

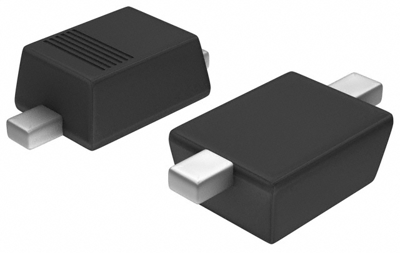

Schottky diode, PMEG4010EJ,115, NEXPERIA
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD323F (SC-90) small Surface-Mounted Device (SMD) plastic package.
Features
- Low forward voltage
- AEC-Q101 qualified
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Reverse polarity protection
- Low power consumption applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Voltage V RRM (peak reverse voltage) | 40 V | |
| max. operating temperature | 150 °C | |
| Number of diodes | 1 | |
| Forward Current | 1 A | |
| Enclosure | SOD-323F | |
| Assembly | SMD | |
| min. operating temperature | -65 °C | |
| Junction temperature (max.) | 150 °C | |
| Capacity | 50 pF | |
| Version | schottky rectifier diode |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
