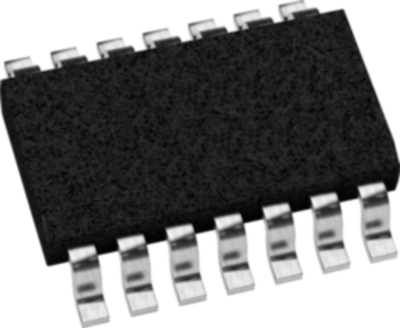

HEF4093BT,653 | NEXPERIA
Quad 2-Input NAND Schmitt-Trigger, SOIC-14, NEXPERIA HEF4093BT,653
Unit Price (€ / pc.)
0.3451 € *
Next delivery: 900 pcs. on 2025-12-05
Quad 2-input NAND Schmitt trigger, HEF4093BT,653, NXP
The HEF4093BT is a quad two input NAND gate. Each input has a Schmitt trigger circuit. The gate switches at different points for positive going and negative going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH).
Features
- Schmitt trigger input discrimination
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Enclosure | SOIC-14 | |
| Output current | 3.4 mA | |
| Product type | Quad 2-Input NAND Schmitt-Trigger | |
| Assembly | SMD | |
| Input voltage | 15 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85423390 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
