74HC14D,652 | NEXPERIA

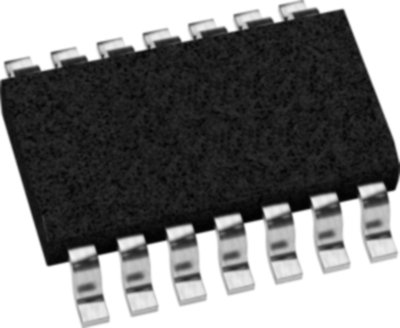

Hex Inverter, SOIC-14, NEXPERIA 74HC14D,652
Discontinued
Unit Price (€ / pc.)
0.2237 € *
Available: 3,411 pcs.
Total Price:
2.24 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2237 €
100 pcs.
0.1856 €
500 pcs.
0.1583 €
1000 pcs.
0.1380 €
2500 pcs.
0.1273 €
*incl. VAT plus shipping costs
Subject to prior sale
Hex inverting Schmitt trigger, 74HC14D,652, NEXPERIA
The 74HC14D,652 is a hex inverter with Schmitt-trigger input. This device features reduced input threshold levels to allow interfacing to TTL logic levels. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Features
- High noise immunity
- Unlimited input rise and fall times
- Complies with JEDEC standards
- ESD protection
- CMOS low power dissipation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Assembly | SMD | |
| Output current | 5.2 mA | |
| Enclosure | SOIC-14 | |
| Input voltage | 6 V | |
| Product type | Hex Inverter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | CN |
| Original Packaging | Bar with 57 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
