PBSS4350X,115 | NEXPERIA

Bipolar junction transistor, NPN, 3 A, 50 V, SMD, TO-243AA, PBSS4350X,115

Order No.: 29S1061
EAN: 4099879030788
MPN:
PBSS4350X,115
Series: PBSS
PBSS4350X,115 NEXPERIA Bipolar Transistors
Image may differ
Unit Price (€ / pc.)
0.0957 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
956.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
10000 pcs.
0.0957 €

NPN transistor, PBSS4350X,115, NEXPERIA

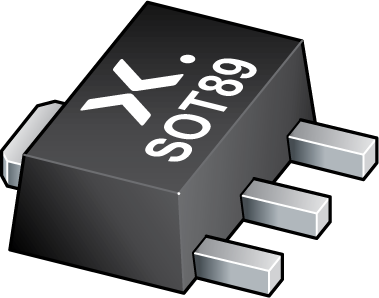

NPN low VCEsat transistor in a SOT89 plastic package.

Features

  • Low collector-emitter saturation voltage
  • High collector current capability
  • Higher efficiency leading to less heat generation
  • Reduced printed-circuit board requirements
  • AEC-Q101 qualified

Applications

  • Power management
  • Peripheral drivers
Technical specifications
Filter Property Value
max.voltage between collector and emitter Vceo 50 V
max. operating temperature 150 °C
Collector current 3 A
Saturation voltage 370 mV
Max DC amplification 700 mA
Min DC gain 300 mA
min. operating temperature -65 °C
max.voltage between collector and base Vcbo 50 V
Enclosure TO-243AA
Assembly SMD
Power dissipation 0.55 W
Transit frequency fTmin 100 MHz
Version NPN
Logistics
Property Value
Original Packaging Reel with 1,000 pieces
Customs tariff number 85412900
Compliance
Property Value
Date of RoHS guidelines 6/8/11
RoHS conform Yes
SVHC free Yes
