PBSS4250X,115 | NEXPERIA
Bipolar junction transistor, NPN, 2 A, 50 V, SMD, TO-243AA, PBSS4250X,115
Unit Price (€ / pc.)
0.0983 € *
Standard delivery time from the manufacturer is: 8 Weeks
NPN transistor, PBSS4250X,115, NEXPERIA

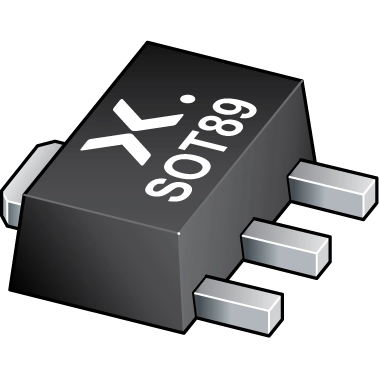

NPN low VCEsat transistor in a SOT89 (SC-62) flat lead surface-mounted device (SMD) plastic package.
Features
- Low collector-emitter saturation voltage
- High collector current capability
- Higher efficiency leading to less heat generation
- Reduced printed-circuit board requirements
- AEC-Q101 qualified
Applications
- Power management
- Peripheral drivers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max.voltage between collector and base Vcbo | 50 V | |
| max. operating temperature | 150 °C | |
| Saturation voltage | 320 mV | |
| Transit frequency fTmin | 100 MHz | |
| Collector current | 2 A | |
| min. operating temperature | -65 °C | |
| Power dissipation | 0.55 W | |
| Min DC gain | 300 mA | |
| Assembly | SMD | |
| max.voltage between collector and emitter Vceo | 50 V | |
| Enclosure | TO-243AA | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
