BST61,115 | NEXPERIA
Bipolar junction transistor, PNP, -1 A, -60 V, SMD, SOT-89, BST61,115
Unit Price (€ / pc.)
0.1833 € *
Standard delivery time from the manufacturer is: 8 Weeks
PNP transistor, BST61,115, NEXPERIA

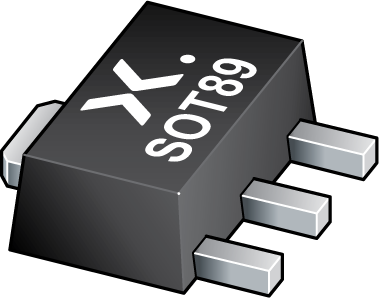

PNP Darlington transistor in a SOT89 (SC-62) flat lead surface-mounted device (SMD) plastic package.
Features
- Integrated diode and resistor
- AEC-Q101 qualified
Applications
- Print hammer
- Solenoid
- Relay and lamp driving
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max.voltage between collector and emitter Vceo | -60 V | |
| max. operating temperature | 150 °C | |
| Collector current | -1 A | |
| Saturation voltage | -1.3 V | |
| min. operating temperature | -65 °C | |
| max.voltage between collector and base Vcbo | -80 V | |
| Enclosure | SOT-89 | |
| Assembly | SMD | |
| Power dissipation | 1.3 W | |
| Transit frequency fTmin | 200 MHz | |
| Version | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85419000 |
| Country of origin | HK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| SVHC free | Yes |
