BF824,215 | NEXPERIA

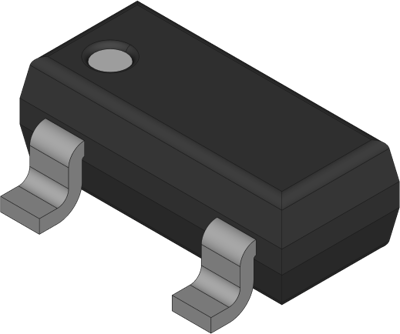

Bipolar junction transistor, PNP, -25 mA, -30 V, SMD, SOT-23, BF824,215
Unit Price (€ / pc.)
0.0684 € *
Standard delivery time from the manufacturer is: 8 Weeks
PNP frequency transistor, BF824,215, NEXPERIA
PNP medium frequency transistor in a SOT23 plastic package.
Features
- AEC-Q101 qualified
Applications
- RF stages in FM front-ends in common base configuration
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOT-23 | |
| Max DC amplification | 50 mA | |
| Transit frequency fTmin | 450 MHz | |
| Min DC gain | 25 mA | |
| Power dissipation | 0.25 W | |
| Assembly | SMD | |
| max.voltage between collector and emitter Vceo | -30 V | |
| max.voltage between collector and base Vcbo | -30 V | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Version | PNP | |
| Collector current | -25 mA | |
| Rated current | 25 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
