BCP55,135 | NEXPERIA

Bipolar junction transistor, NPN, 1 A, 60 V, SMD, TO-261, BCP55,135

Order No.: 12S6582
EAN: 4099879027474
MPN:
BCP55,135
Series: BCP
BCP55,135 NEXPERIA Bipolar Transistors

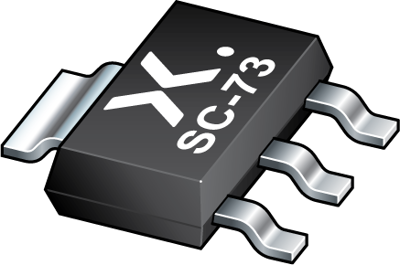

Image may differ
Unit Price (€ / pc.)
0.0650 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
779.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
12000 pcs.
0.0650 €

NPN power transistor, BCP55,135, NEXPERIA

NPN medium power transistor series in a small SOT223 (SC-73) surface-mounted device (SMD) plastic package.

Features

  • High current
  • High power dissipation capability
  • Three current gain selections

Applications

  • Power management
  • Battery-driven devices
  • Amplifiers
  • Low-side switches
  • Linear voltage regulators
Technical specifications
Filter Property Value
max. operating temperature 150 °C
max.voltage between collector and emitter Vceo 60 V
Saturation voltage 500 mV
Version NPN
Max DC amplification 250 mA
Power dissipation 0.65 W
Assembly SMD
Min DC gain 63 mA
Collector current 1 A
Enclosure TO-261
max.voltage between collector and base Vcbo 60 V
Transit frequency fTmin 100 MHz
min. operating temperature -65 °C
Rated current 1 A
Logistics
Property Value
Original Packaging Reel with 1,000 pieces
Country of origin CN
Customs tariff number 85412900
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
