NC6MSXX-B | Neutrik
XLR plug, 6 pole, silver-plated, 1.0 mm², AWG 18, zinc die casting, NC6MSXX-B
Unit Price (€ / pc.)
11.6977 € *
Standard delivery time from the manufacturer is: 1 Week

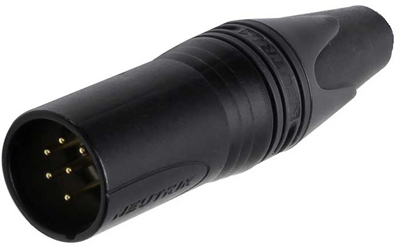

Male cable connector, NC6MSXX-B, Neutrik
6 pole male cable connector.
Technical specifications
| Rated current | 7.5 A | |
| Cable diameter | 3.5-8 mm | |
| Type of locking | latch locking | |
| contact surface | silver-plated | |
| Enclosure | zinc die casting | |
| Assembly | cable assembly | |
| Cable cross-section | 1.0 mm² | |
| Version | plug | |
| Pin number | 6 pole | |
| Rated voltage | 50 V | |
| AWG cross-section | AWG 18 | |
| Contact connection | solder connection |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
