NC6MD-L-BAG-1 | Neutrik
XLR panel plug, 6 pole, silver-plated, 1.0 mm², AWG 18, zinc die casting, NC6MD-L-BAG-1
Unit Price (€ / pc.)
15.1130 € *
Available: 14 pcs.
Total Price:
15.11 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1130 €
10 pcs.
13.9944 €
25 pcs.
13.0305 €
50 pcs.
11.8048 €
*incl. VAT plus shipping costs
Subject to prior sale

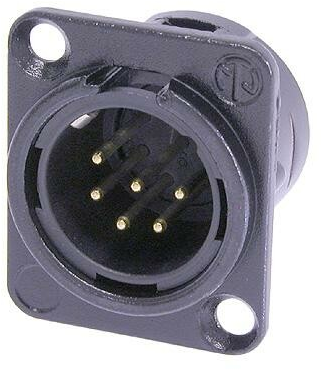

Chassis plug connector, NC6MD-L-BAG-1, Neutrik
6 pole male receptacle, solder cups, black metal housing, silver contacts. UL recognized component.
Features
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | zinc die casting | |
| Version | panel plug | |
| Pin number | 6 pole | |
| Cable cross-section | 1.0 mm² | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Assembly | chassis mounting | |
| Type of locking | latch locking | |
| Colour | black | |
| Rated current | 7.5 A | |
| Rated voltage | 50 V | |
| AWG cross-section | AWG 18 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
