NC6FX | Neutrik

XLR jack, 6 pole, silver-plated, 1.0 mm², AWG 18, metal, NC6FX

Order No.: 70F1823
EAN: 4099889857672
MPN:
NC6FX
Series: X
NC6FX Neutrik XLR Connectors
Image may differ

No longer available from manufacturer

Unit Price (€ / pc.)
11.186 € *
Available: 11 pcs.
Total Price:
11.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.186 €

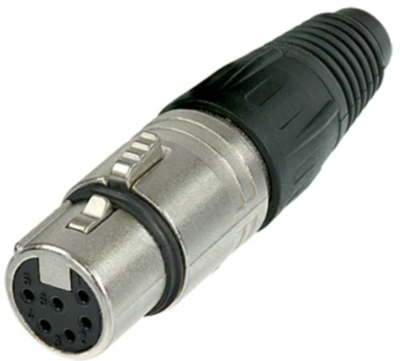

XLR cable connector, NC6FX, NEUTRIK

6 pole female cable connector with Nickel housing and silver contacts. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

Features

  • Rugged zinc diecast shell, long lasting and durable
  • Boot with rubber gland gives high protection against bending stresses
Technical specifications
Filter Property Value
Version jack
AWG cross-section AWG 18
Cable cross-section 1.0 mm²
Rated voltage 50 V
contact surface silver-plated
Pin number 6 pole
Type of locking snap lock
Enclosure metal
Rated current 7.5 A
Contact connection solder connection
Assembly cable assembly
Cable diameter 3.5-8 mm
Logistics
Property Value
Customs tariff number 85366990
Country of origin LI
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
