NC5MX | Neutrik

XLR plug, 5 pole, silver-plated, 1.0 mm², AWG 18, metal, NC5MX

Order No.: 80F5172
EAN: 4099889858990
MPN:
NC5MX
Series: X
NC5MX Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
7.7469 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.7469 €

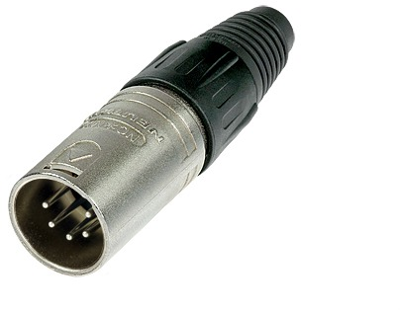

RX cable plug, NC5MX, NEUTRIK

5 pole male cable connector with Nickel housing and silver contacts. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

Features

  • Rugged zinc diecast shell, long lasting and durable
  • Boot with rubber gland gives high protection against bending stresses
Technical specifications
Cable diameter 3.5-8 mm
Type of locking snap lock
contact surface silver-plated
Assembly cable assembly
AWG cross-section AWG 18
Enclosure metal
Rated current 7.5 A
Contact connection solder connection
Cable cross-section 1.0 mm²
Pin number 5 pole
Version plug
Rated voltage 50 V
Logistics
Country of origin LI
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
