NC5MX-TOP | Neutrik
XLR plug, 5 pole, gold-plated, 1.0 mm², AWG 18, stainless steel, NC5MX-TOP
No longer available from manufacturer
Unit Price (€ / pc.)
11.7215 € *
Available: 7 pcs.

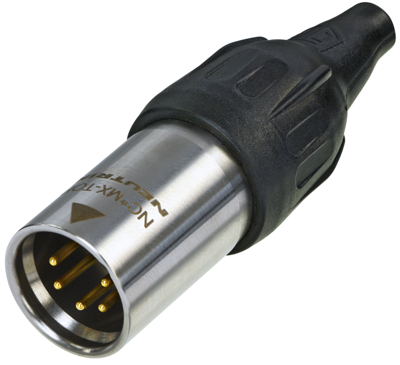

Male cable connector, NC5MX-TOP, Neutrik
5 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts, IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range.
Features
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Uses high impact UV resistant materials
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| AWG cross-section | AWG 18 | |
| Cable cross-section | 1.0 mm² | |
| Rated voltage | 50 V | |
| contact surface | gold-plated | |
| Pin number | 5 pole | |
| Type of locking | snap lock | |
| Enclosure | stainless steel | |
| Rated current | 7.5 A | |
| Contact connection | solder connection | |
| Assembly | cable assembly | |
| Cable diameter | 5-8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
