NC5MD-LX-BAG | Neutrik
XLR panel plug, 5 pole, silver-plated, 1.0 mm², AWG 18, metal, NC5MD-LX-BAG
Unit Price (€ / pc.)
11.2574 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
11.26 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2574 €
10 pcs.
10.4244 €
25 pcs.
9.7104 €
50 pcs.
8.7941 €
*incl. VAT plus shipping costs
Subject to prior sale

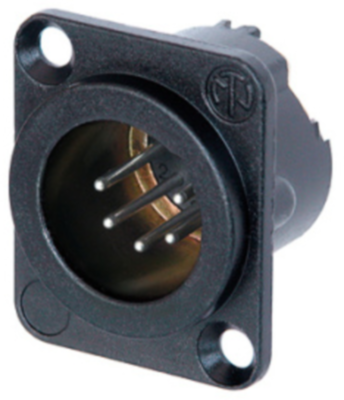

XLR plug, NC5MD-LX-BAG, NEUTRIK
5 pole male receptacle, solder cups, black metal housing, silver contacts.
Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Optional connection to easily join pin1 to chassis ground
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Larger solder contacts for easier termination
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 | |
| Contact connection | solder connection | |
| Rated current | 7.5 A | |
| contact surface | silver-plated | |
| Colour | black | |
| Assembly | PCB mounting | |
| Rated voltage | 50 V | |
| Pin number | 5 pole | |
| Version | panel plug | |
| Enclosure | metal | |
| Type of locking | snap lock | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
