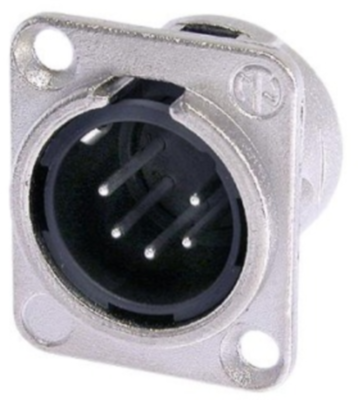

NC5MD-L-1 | Neutrik
XLR panel plug, 5 pole, silver-plated, 1.0 mm², AWG 18, metal, NC5MD-L-1
Unit Price (€ / pc.)
11.5906 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
11.59 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5906 €
10 pcs.
10.7338 €
25 pcs.
9.9960 €
50 pcs.
9.0559 €
*incl. VAT plus shipping costs
Subject to prior sale
XLR plug, NC5MD-L-1, NEUTRIK
5 pole male receptacle, solder cups, Nickel housing, silver contacts.
Features
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.0 mm² | |
| contact surface | silver-plated | |
| Type of locking | snap lock | |
| Version | panel plug | |
| Assembly | PCB mounting | |
| Enclosure | metal | |
| Rated current | 7.5 A | |
| Pin number | 5 pole | |
| Contact connection | solder connection | |
| Rated voltage | 50 V | |
| AWG cross-section | AWG 18 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
