NC5MAV-SW | Neutrik
XLR panel plug, 5 pole, gold-plated, polyamide, NC5MAV-SW
Unit Price (€ / pc.)
13.2090 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
13.21 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2090 €
10 pcs.
12.2332 €
25 pcs.
11.3883 €
50 pcs.
10.3173 €
*incl. VAT plus shipping costs
Subject to prior sale

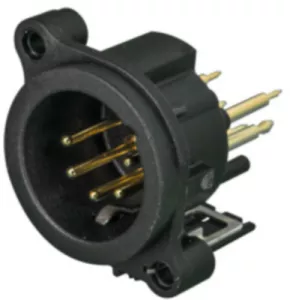

Chassis plug connector, NC5MAV-SW, Neutrik
5 pole male XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount, color coding possible.
The switching contacts are activated by the mating connector offering the possibility to indicate, monitor and control the mated connection. The switch provides a normal open and normal closed contact.
Features
- Polished contact areas and hard gold plating
- Fitted with changeover switch
- Switch activated by inserting the cable connector
- Plastic housing, steel latch lock
- Housing flammability UL94HB
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder pin | |
| Rated current | 3 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Assembly | PCB mounting | |
| Rated voltage | 50 V | |
| Pin number | 5 pole | |
| Version | panel plug | |
| Enclosure | polyamide | |
| Type of locking | latch locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
