NC5FX-TOP | Neutrik
XLR jack, 5 pole, gold-plated, 1.0 mm², AWG 18, NC5FX-TOP
No longer available from manufacturer
Unit Price (€ / pc.)
11.1027 € *
Available: 12 pcs.

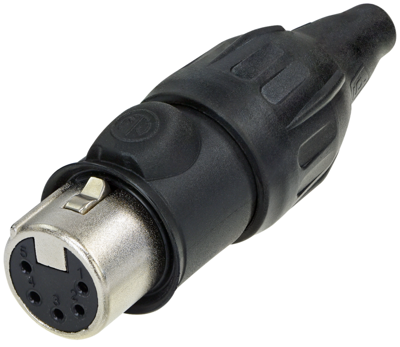

Female cable connector, NC5FX-TOP, Neutrik
5 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range.
Features
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Uses high impact UV resistant materials
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | jack | |
| contact surface | gold-plated | |
| Pin number | 5 pole | |
| Type of locking | snap lock | |
| Contact connection | solder connection | |
| Rated voltage | 50 V | |
| Cable cross-section | 1.0 mm² | |
| Rated current | 7.5 A | |
| Cable diameter | 5-8 mm | |
| AWG cross-section | AWG 18 | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
