NC5FDXX-TOP | Neutrik
Panel socket, 5 pole, gold-plated, polyamide, NC5FDXX-TOP
Unit Price (€ / pc.)
12.4950 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
12.50 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4950 €
10 pcs.
11.5668 €
25 pcs.
10.7695 €
50 pcs.
9.7580 €
*incl. VAT plus shipping costs
Subject to prior sale

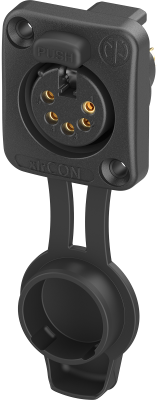

XLR panel socket connector, NC5FDXX-TOP, Neutrik
The "xlrCON TOP airtight" chassis connector is the perfect solution for demanding outdoor application and the harshest condition. With an impressive array of feature and a particular focus on protection and performance, the "xlrCON TOP airtight" is the choice for professional who requires absolute reliability.
With the xlrCON TOP airtight, you can count on a secure connection, even in the most extreme outdoor condition. Rely on its protective feature and high performance to ensure signal connection that meets the most stringent requirement. Trust in TRUE OUTDOOR PROTECTION with this outstanding chassis connector from NEUTRIK - your link to the future.
Features
- Corrosion resistance
- UV protection
- Easy maintenance due to front-mount design
- Flame retardant (V0, halogen free)
- ESD protection up to 2 kV
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Rated current | 7.5 A | |
| Version | panel socket | |
| Assembly | front mounting | |
| Rated voltage | 50 V | |
| Enclosure | polyamide | |
| contact surface | gold-plated | |
| Type of locking | latch locking | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
