NC5FDX-TOP | Neutrik

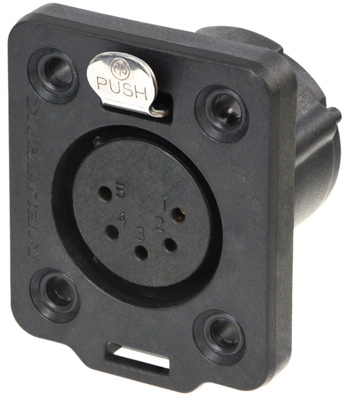

XLR panel socket, 5 pole, gold-plated, NC5FDX-TOP
Unit Price (€ / pc.)
13.3994 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
13.40 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3994 €
10 pcs.
12.4117 €
25 pcs.
11.5549 €
50 pcs.
10.4720 €
*incl. VAT plus shipping costs
Subject to prior sale
XLR connector, NC5FDX-TOP, NEUTRIK
The NC5FDX-TOP is a "heavy-duty" XLR 5 pole female chassis connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range.
Features
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Uses high impact UV-resistant materials
- Maintains sealing when in use and when disconnected
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| Rated current | 7.5 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Assembly | front mounting | |
| Rated voltage | 50 V | |
| Pin number | 5 pole | |
| Version | panel socket | |
| Type of locking | snap lock |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
