NC5FBV-SW | Neutrik

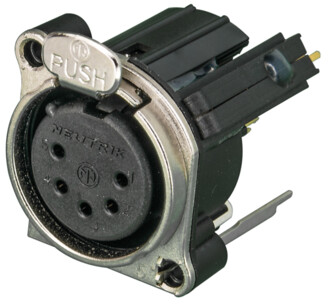

XLR panel socket, 5 pole, silver-plated, polyamide, NC5FBV-SW
Unit Price (€ / pc.)
13.7564 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
13.76 € *
Price list
Quantity
Price per unit*
1 pcs.
13.7564 €
10 pcs.
12.7330 €
25 pcs.
11.8643 €
50 pcs.
10.7457 €
*incl. VAT plus shipping costs
Subject to prior sale
Chassis female connector, NC5FBV-SW, Neutrik
5 pole female XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount.
The switching contacts are activated by the mating connector offering the possibility to indicate, monitor and control the mated connection. The switch provides a normal open and normal closed contact.
Features
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
- Fitted with changeover switch
- Switch activated by inserting the cable connector
- Fork type female contact
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder pin | |
| Rated current | 3 A | |
| contact surface | silver-plated | |
| Assembly | PCB mounting | |
| Rated voltage | 50 V | |
| Pin number | 5 pole | |
| Version | panel socket | |
| Enclosure | polyamide | |
| Type of locking | latch locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
