NC5FBH | Neutrik
XLR panel socket, 5 pole, gold-plated, metal, NC5FBH
Unit Price (€ / pc.)
6.0214 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
6.02 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0214 €
10 pcs.
5.5811 €
25 pcs.
5.1884 €
50 pcs.
4.7005 €
*incl. VAT plus shipping costs
Subject to prior sale

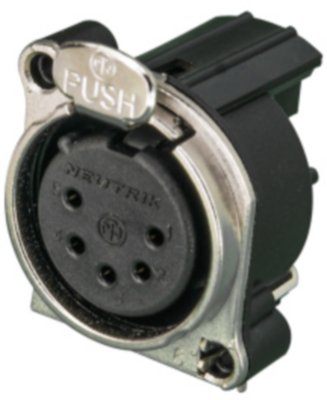

XLR receptacle, NC5FBH, NEUTRIK
5 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount.
Features
- Fork type female contact
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | metal | |
| Version | panel socket | |
| Pin number | 5 pole | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Type of locking | snap lock | |
| Colour | black | |
| Rated current | 3 A | |
| Rated voltage | 50 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
