NC4MXX-B | Neutrik

XLR plug, 4 pole, gold-plated, 1.5 mm², AWG 16, zinc die casting, NC4MXX-B

Order No.: 39F1330
EAN: 7613187000317
MPN:
NC4MXX-B
Series: XX
NC4MXX-B Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
6.6521 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
6.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.6521 €

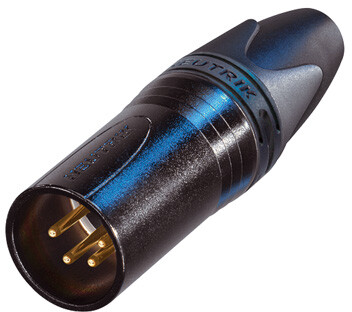

XLR-Cable connector male, NC4MXX-B, Neutrik

4 pole male cable connector with black metal housing and gold contacts.

Features

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
  • Internal thread on shell is well protected against any damage
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Rugged zinc diecast shell, long lasting and dependable
Technical specifications
Version plug
Pin number 4 pole
Type of locking latch locking
Contact connection solder connection
Enclosure zinc die casting
Colour black
contact surface gold-plated
Assembly cable assembly
Cable cross-section 1.5 mm²
AWG cross-section AWG 16
Cable diameter 3.5-8 mm
Rated voltage 50 V
Rated current 10 A
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
