NC4MRX | Neutrik
XLR plug, 4 pole, silver-plated, 1.5 mm², AWG 16, zinc die casting, NC4MRX
Unit Price (€ / pc.)
12.0666 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
12.07 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0666 €
10 pcs.
11.1741 €
25 pcs.
10.4006 €
50 pcs.
9.4248 €
*incl. VAT plus shipping costs
Subject to prior sale

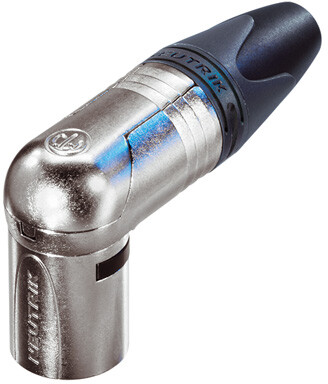

XLR-Cable connector male, NC4MRX, Neutrik
4 pole right angle male cable connector, nickel housing, silver contacts.
Features
- Extra slim right-angle connector
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Boot with polyurethane gland gives high protection to cable bending stresses
- Sleek and ergonomic design - valuable and handy
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 | |
| Contact connection | solder connection | |
| Rated current | 10 A | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Cable diameter | 3.5-8 mm | |
| Rated voltage | 50 V | |
| Pin number | 4 pole | |
| Version | plug | |
| Enclosure | zinc die casting | |
| Type of locking | latch locking | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
